Export External Images to Excel

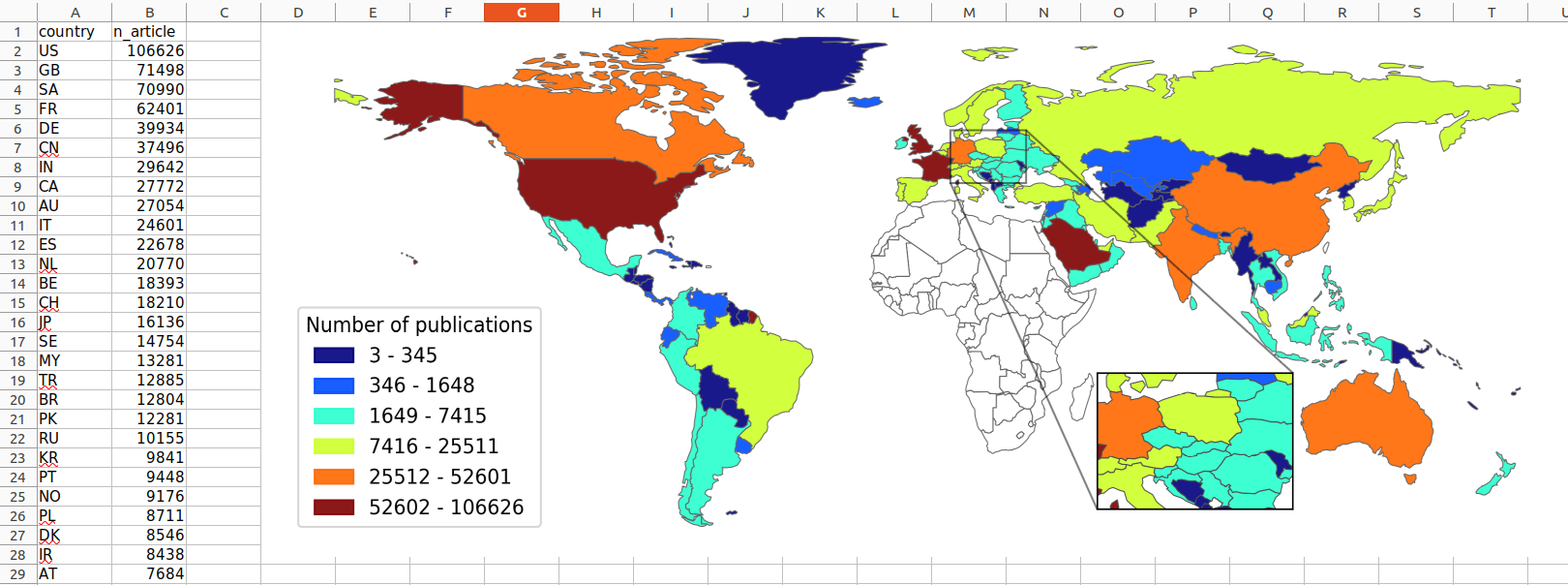

The ImageChart class allows you to insert images from your local device by providing the absolute path to the image file. This is ideal for adding figures generated by external tools into Excel. The class also enables the inclusion of the data used to create the figure.

from sql2excel.chart import ImageChart


# Read data
df = pd.read_csv(
    "data/Africa_collab_2013_2022.csv", delimiter=";", keep_default_na=False
)

# Insert into excel
chart = ImageChart()
# Adjust width and height while preserving aspect ratio
chart.add_image("data/Africa_collab_2013_2022.png",
                 ws,
                 df=df,
                 width=1425,
                 height=552)

Note

dataframe is optional for ImageChart.add_image. If not provided the image will be include but no data will be written.

Tip

When inserting images, you need to set width and height as shown above. Otherwise, your image can appear as a very small rectangle that is hardly visible.
